Drive Units

1 x 200mm drive unit

Amplifier

100W

Frequency

40Hz to 200Hz

Controls

Volume

Phase, zero and 180º

Crossover frequency, variable 50Hz to 200Hz

Outputs

Phono line level

Inputs

Phono, line level

Binding posts, loudspeaker level

Voltage

100 to 240V

Fixing

Free standing or wall mountable

Dimensions (mm)

H 323 x W 228 x D 470 (including rear cover)

Weight

12Kg

For applications requiring extended, higher level bass performance, such as an Audio-Visual system playing back film material, the

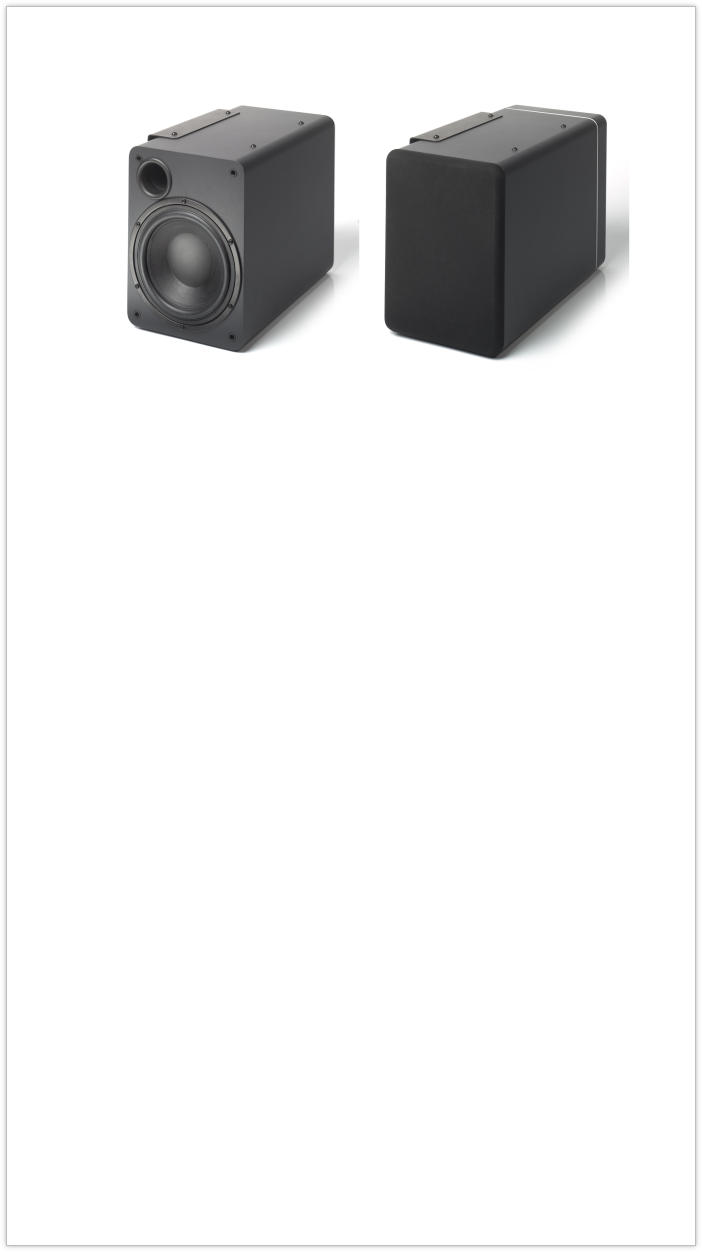

MICROsub 3 can be added to the main loudspeakers and carefully tuned just to add extended bass and not confuse the critical mid-band.



With all of the MICROseries loudspeakers, aesthetics have been a prime consideration. This starts with the family look, which is softly shaped to merge into the environment. Secondly with the selection of materials, which have to be acoustically excellent but also provide for flexibility of design and quality of appearance. The MICROsub 3 incorporates a full amp-panel cover to ensure it looks good from all angles and prevent access to controls and electrical connections. It also has a steel mesh grille under the aesthetic cloth cover.



Equally important for aesthetics, and speed and quality of installation, are the fixings and brackets. The MICROsub 3 is supplied with its own mounting bracket which allows flush mounting to walls or ceilings.





Downloads:

MICROsub manual

Brochure (pdf)

Photographs (jpeg/zip)
